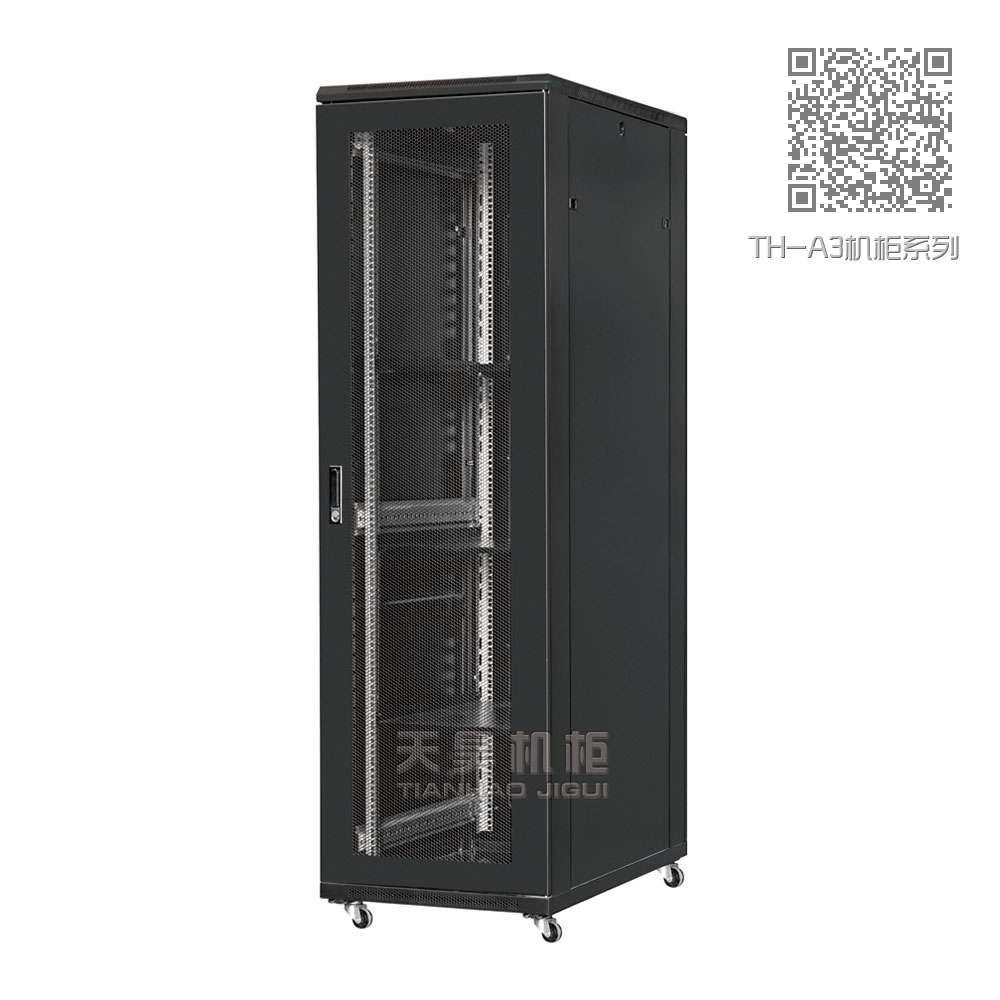

型号：TH-A3机柜系列Model：

型号 TH-A3 型号 TH-A3

规格 可根据客户需求定制 规格 可根据客户需求定制

.


产品规格Product specification
代购代码 宽度 深度 高度 容量
TH-A3.6624.02■ 600 600 2045 42U
TH-A3.6842.02■
 600
 800 2045
 42U
TH-A3.6942.02■
 600
 900 2045
 42U
TH-A3.6042.02■
 600
 1000 2045
 42U
TH-A3.6242.02■
 600
 1200 2045
 42U
TH-A3.8642.02■
 800 600 2045
 42U
TH-A3.8842.02■
 800
 800 2045
 42U
产品规格Product specification
代购代码 宽度 深度 高度 容量
TH-A3.8942.02■ 800 900 2045 42U
TH-A3.8042.02■
 800
 1000 2045
 42U
TH-A3.8242.02■
 800
 1200 2045
 42U
TH-A3.6642.02■
 600
 600 1245
 24U
TH-A3.6842.02■
 600
 800 1245
 24U
TH-A3.6942.02■
 600 900 1245
 24U
TH-A3.6042.02■
 600
 1000 1245
 24U


标准:符合ANSI/EIA RS-310-D、IEC297-2、DIN41491；PART1、DIN41494；PART7、 GB/T3047.2- 92标准；兼容ETSI标准 ；
特点:高密度六角网孔前门及高密度六角网孔后门，一揽子解决机械保护、通风散热、外部观察机械运行状态三方面的使用要求；通风率达到71.2%前后为圆形通风孔的上下框；外观设计高贵典雅，工艺精，尺寸精密，极富时代气息，为您的工程增添价值；关闭的上部、下部多处走线通道，底部大走线孔尺寸可按需调整；可选配安装，达到固定机柜、底部过线。底部送冷风、防鼠的要求；高效坚固的并柜连接；齐全的可选配件
Standard: in accordance with ANSI/EIA RS - 310 - D, IEC297-2, DIN41491;PART1, DIN41494;PART7, GB/T3047.2-92 standard;Compatible with ETSI standards;
Features: high density hexagonal mesh front door and high density hexagonal mesh back door, solving the mechanical protection, ventilation cooling, external observation the use requirements of the machine running state three aspects;Before and after the ventilation rate of 71.2% for circular vent box up and down;Elegant appearance design, process fine, size precision, extremely rich period flavor, add value to your project.Shut down more than the upper and lower line channel, a big line at the bottom of the hole size can be adjusted as needed.Optional installation to the fixed rack, the bottom line.At the bottom of the cold wind, the requirement of rat;Efficient solid and tank connection;The complete optional accessories
