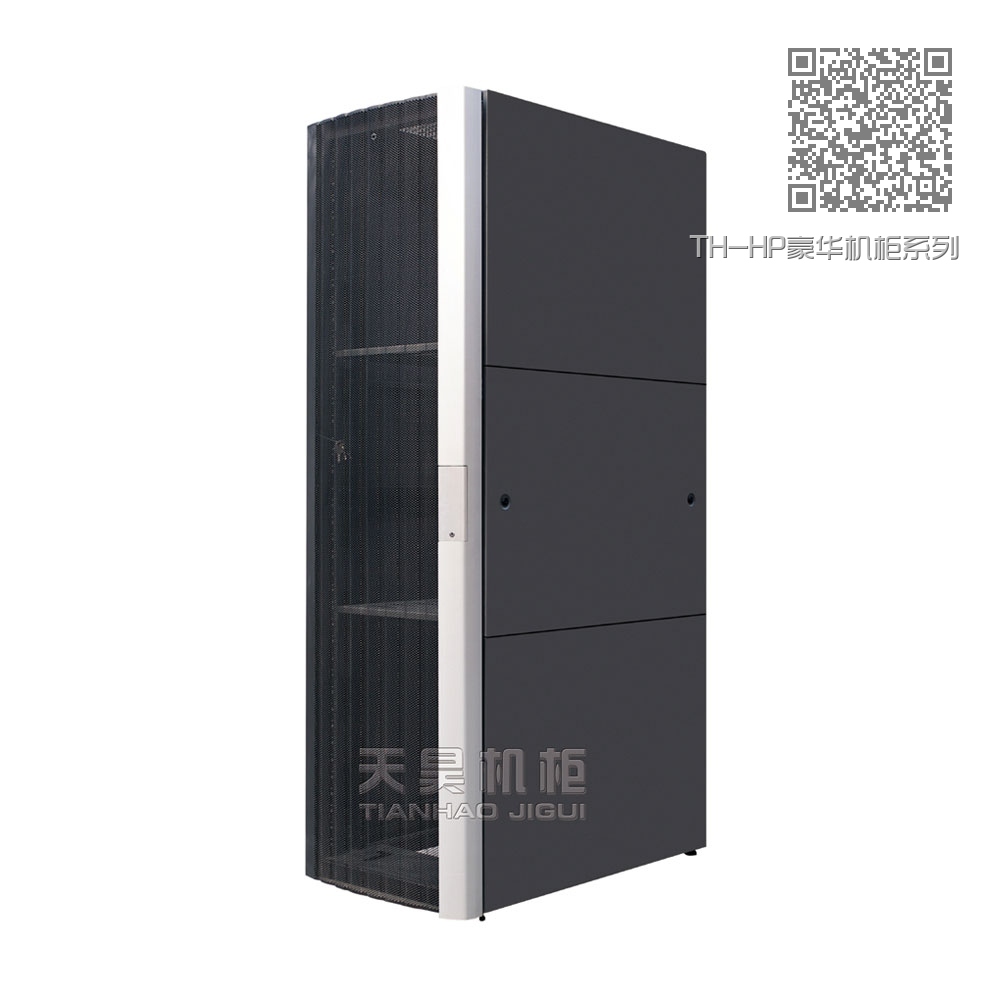

型号:TH-HP豪华机柜系列Model:

型号 TH-HP 型号 TH-HP

规格 可根据客户需求定制 规格 可根据客户需求定制

.


机柜五件套:1主体 2 侧板 3 前门 4 机柜主机 5 1U带轨迹球的键盘托架

服务器机柜10642的主要技术参数:
静态荷载:908 KG
机架容量:42U
外形尺寸:59.7×101.5×200 厘米(宽 x 长 x 高)
机柜净重:114.84 KG
服务器机柜10642-标准是三件套设备:
245161-B21 机柜主机 承载多达42台服务器,重达2,000磅的设备
246099-B21 机柜侧板
257054-B21 1U带轨迹球的键盘托架
257414-B21 220V 机架风扇JY5642 机架是一款未组装、采用标准尺寸托盘的 42U 机架。 JY5642 机架是一款标准机架,宽 19 英寸,长 1000 毫米,并且 RETMA 导轨上有标准方形孔; 它标配有侧面板和前后门,但不附带轮脚; 静负荷量(即部署机架时的大负荷)为 680 千克(1500 磅); JY5642 组装方便,一个或两个人可在一小时内完成。 它属于入门级机架,具有轻松访问、使用方便的特性; 它的空间容量与 42U 机架相同,因此可使客户的 IT 投资获得更大收益; JY 5642 机架的可用选件包括机架稳定套件和机架连接套件
服务器机柜5642的主要技术参数:
静态荷载:680 KG
机架容量:42U
外形尺寸:58.57 x 100.65 x 198.28 厘米(宽 x 长 x 高)
机柜净重:84.55 KG

Set pieces cabinet five: 1 subject 2 sides 3 front door cabinet host 4    5  1 u
with a trackball keyboard tray
Server rack 10642 the main technical parameters:
Static load: 908 KG
The rack capacity: 42 u
Dimensions: 59.7 x 101.5 x 200 cm (width x length x height)
Cabinet net weight: 114.84 KG
Mixer server cabinet 10642 - set standard three devices:
245161 - B21 host up to 42 server cabinet, weighing in at 2000 pounds of equipment
246099 - B21 cabinet side panel
257054 - B21 1 u with a trackball keyboard tray
Mixer 257414 - B21 220 v rack fanJY5642 frame is a not assembly, use standard pallet size 42 u rack. JY5642 frame is a standard rack, 19 inches wide, 1000 mm long, and there is a square hole in the standard RETMA guide rail. It is equipped with side panels and QianHouMen, but not with round feet. Static load (that is, the deployment of frame) when the maximum load of 680 kg (1500 pounds). JY 5642 convenient assembly, one or two people can be finished in an hour. It belongs to the entry-level frame, has the characteristics of easy access, easy to use. Its spatial capacity and 42 u rack is the same, so can make customers IT investment for greater returns. JY 5642 frame of the available options include rack stable suite and frame connection kit
Server rack 5642 the main technical parameters:
Static load: 680 KG
The rack capacity: 42 u
Dimensions: 58.57 x 100.65 x 100.65 cm (width x length x height)
Cabinet net weight: 84.55 KG
