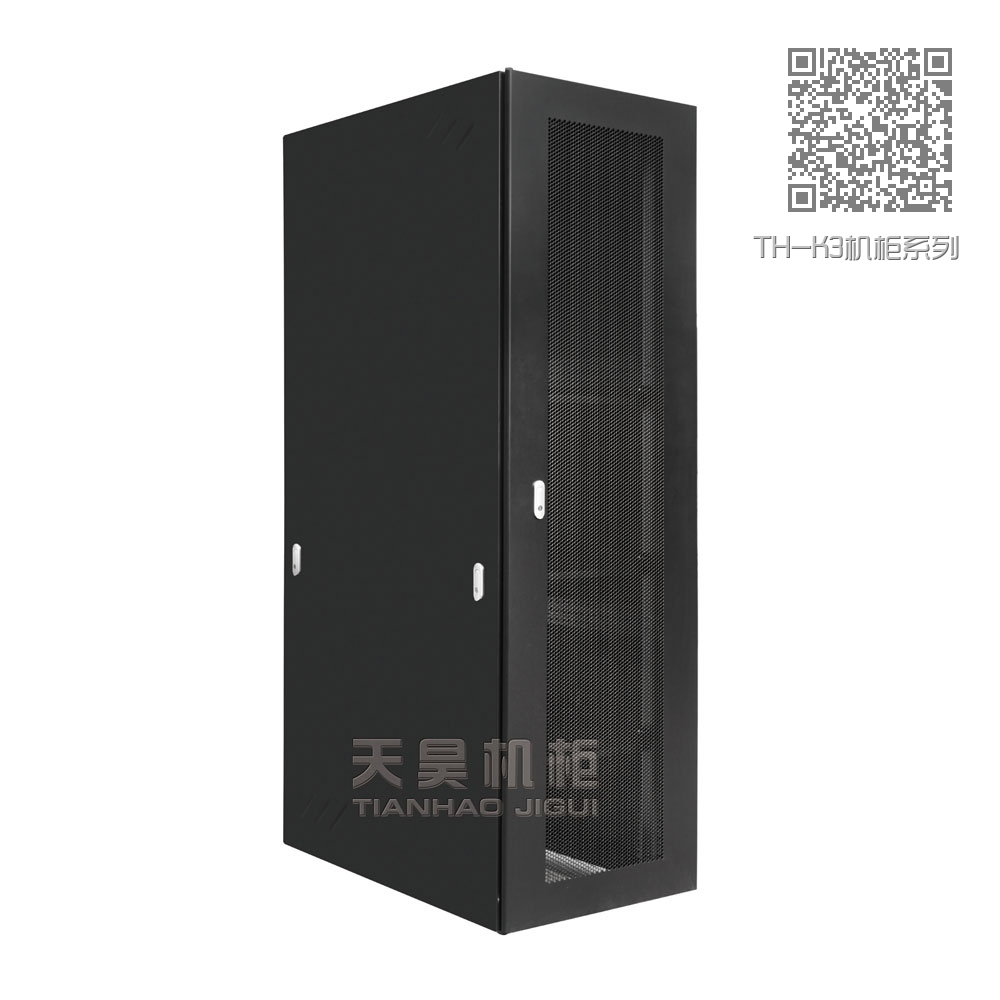

型号：TH-K3机柜系列Model：
型号 TH-K3 型号 TH-K3
规格 可根据客户需求定制 规格 可根据客户需求定制
.
|
产品规格Product specification |
||||
| 代购代码 | 宽度 | 深度 | 高度 | 容量 |
| TH-K3.6624.90■ | 600 | 600 | 1198 | 24U |
|
TH-K3.6824.90■ |
600 | 800 | 1198 | 24U |
|
TH-K3.6924.90■ |
600 | 900 | 1198 | 24U |
|
TH-K3.6024.90■ |
600 | 900 | 1198 | 24U |
|
TH-K3.6642.90■ |
600 | 600 | 1998 | 42U |
| TH-K3.6842.90■ | 600 | 800 | 1998 | 42U |
| TH-K3.6942.90■ | 600 | 900 | 1998 | 42U |
| TH-K3.6042.90■ | 600 | 1000 | 1998 | 42U |
| TH-K3.8642.90■ | 800 | 600 | 1998 | 42U |
| TH-K3.8842.90■ | 800 | 800 | 1998 | 42U |
| TH-K3.8942.90■ | 600 | 900 | 1998 | 24U |
| TH-K3.8042.90■ | 600 | 1000 | 1998 | 24U |
| 订购号后第一位（颜色）定义： | ||||
|
订购代码 |
涂层颜色 |
|||
| TH-K3.■■■■.■■0 | TH7035 | |||
| TH-K3.■■■■.■■1 | TH9044 | |||
| 颜色： | ||||
|
TH9044 |
TH7035 |
|||
|
■ |
■ |
|||
承载:静载1000 KG 防护等级:IP20
主要材料:SPCC优质冷轧钢板制作；
厚度：方孔条2.0mm，框架、安装梁1.5mm，托盘1.5mm，其它1.2mm
表面处理:框架脱脂、酸洗、磷化、电泳防水浸蜡底，漆后静电喷塑其余脱脂、酸洗、磷化、静电喷塑
Host: static load of 1000 kg protection grade: IP20
Main ingredients: high-quality cold-rolled steel sheet production (SPCC)
Thickness: 2.0 mm square hole, frame and install beam 1.5 mm, the tray is 1.5 mm, 1.2 mm
framework of surface treatment: degreasing, pickling, phosphating, electrophoresis waterproof paraffin base, after paint the rest degreasing, pickling, phosphating, electrostatic plastic spraying electrostatic pensu
标准:符合ANSI/EIA RS-310-D、IEC297-2、DIN41491;PART1、DIN41494; PART7、GB/T3047.2- 92标准;兼容ETSI标准。
特点:型材焊接框架结构,框架强度高;标准安装;安装尺寸可根据需要扩展;外观高贵典雅，工艺精湛、尺寸精密，媲美国际高档网络服务器机柜，彰显优质机房工程形象; 高通风率六角网孔前门、双开六角网孔后门，一揽子解决机械保护、通风散热、外部观察机器运行状态三方面的使用要求;底部敞开式进线，可加装可关闭的盖板;带锁侧门,方便维护与防盗;月光旋把机柜门锁; 齐全的可选配件
Standard: in accordance with ANSI/EIA RS - 310 - D, IEC297-2, DIN41491;PART1, DIN41494;PART7, GB/T3047.2-92 standard;Compatible with ETSI standards.
Features: material welding frame structure, high strength of the framework;Standard installation;Installation size according to need to scale;Elegant appearance, exquisite workmanship, size precision, comparable to the most high-end web server cabinet, display high quality computer room engineering image;High ventilation rate hexagonal mesh, double hexagonal mesh back door open the front door, solving the mechanical protection, ventilation cooling, external observation the use requirements of the machine running state three aspects;At the bottom of the open type into the line, can be mounted to close the cover plate;Lock door, convenient maintenance and security;The moonlight spin the cabinet door lock;The complete optional accessories
